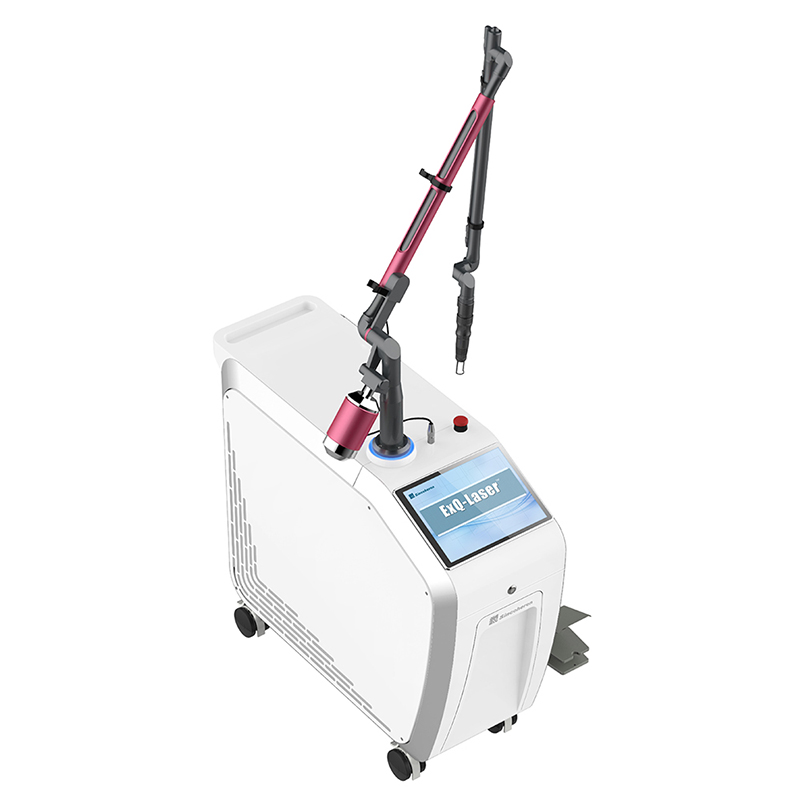

Q switch Nd Yag Laser Machine

胡旭阳

Short Description:

Q switch Nd Yag Laser Machine is able to penetrate into deep layer of the skin, therefore, it is easily absorbed by blue, black and green color pigment. Therefore, it is suitable to treat the pigment disease in the dermal layer for example getting rid tattoos, eyebrow tattoos, nevus and pigmented disease.


Product Detail

Product Tags

Mode 1- Single light single rod

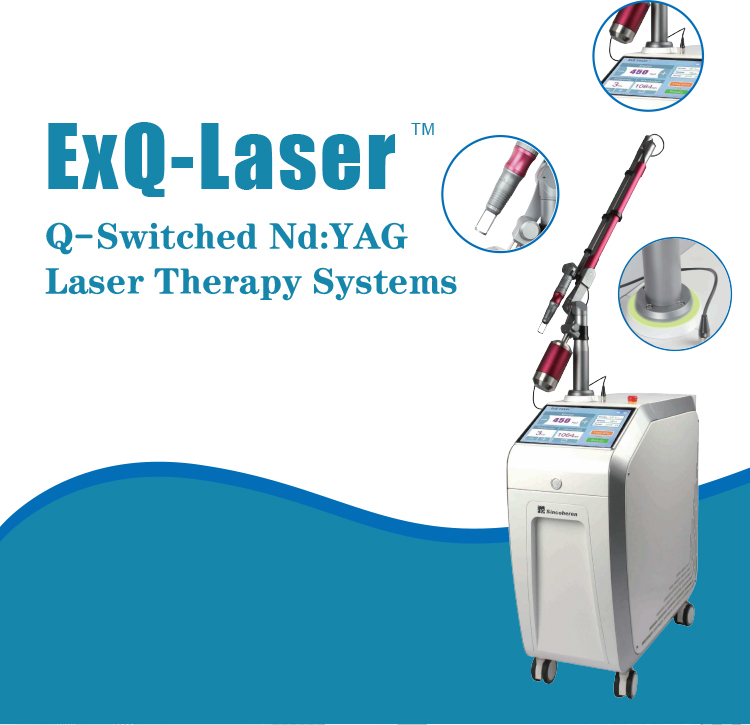

Q-Metrx 1000 laser is the newest generation of Electro-Optic Q-switched Nd:YAG Solid State Laser. It is ideal for treatment of wide range of skin pigment, especially for black, blue, brown and red tattoos. It has been proved highly successful for tattoo removal including eyebrow, eye line, body tattoo, pigmented lesion, lip line and allergic resource of red dyestuff. Q-Metrx 1000 is professional designed to get rid of Nevus of Ota, Coffee spot, Birthmark, Skin Whitening, Pigmented Lesions, Age Spot, etc.

KES multi-functional beauty equipment discovery pico tattoo removal/all skin tattoo removal/tattoo remove nano laser

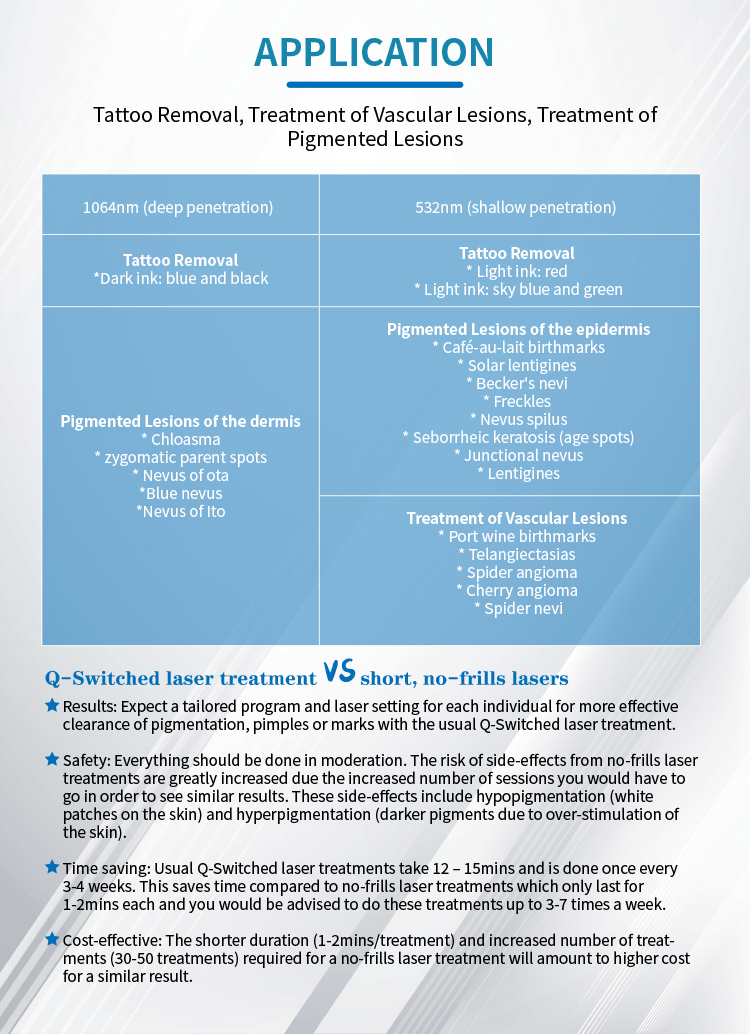

Indications of Treatment:



Dermis pigmentation

—–Birth mark, such as: Ota nevus, Ito nevus, black nevus

—–Pigment, such as: sunburn spots, age spots, speckle, freckle, senior fleck

—–Man made pigment: Blue, black, red, brown tattoo, lips line, eyebrow line



Epidermis pigmentation

—–Speckles: such as freckle, senior flecks, coffee spot……



Vascular lentigines

—–vascular lesion, spider vessel, spider veins



Skin rejuvenation with laser peeling

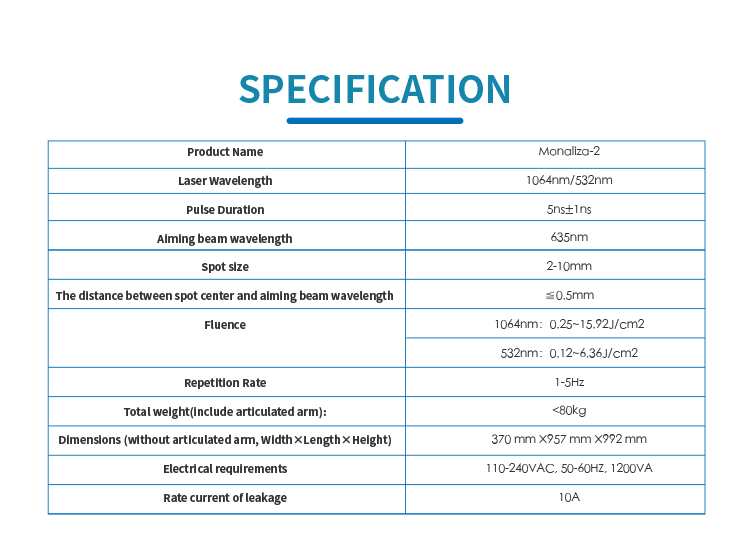

Light source: Electro-Optic Q-switched Nd:YAG Solid State Laser
Display Screen: 10.4 inch Color Touch Display Screen
Wavelength: 1064nm or 532nm
Spot Size: Adjustable Spot Size 2-10 mm(Diameter)
Energy: 1064nm 100-1000mJ 532nm 100-500mJ
Pulse duration: 5-7ns
Pulse rate: Adjustable from 1-10Hz
Aiming Beam: Red Diode Laser(On, Off, Blinking Available)
Power supply: 220v±10%,50/60hz
Cooling system Air cooling and water cooling
Continuous working time Can work continuously for 24 hours (when the room temperature is 25 degrees)
Humidity <=85%

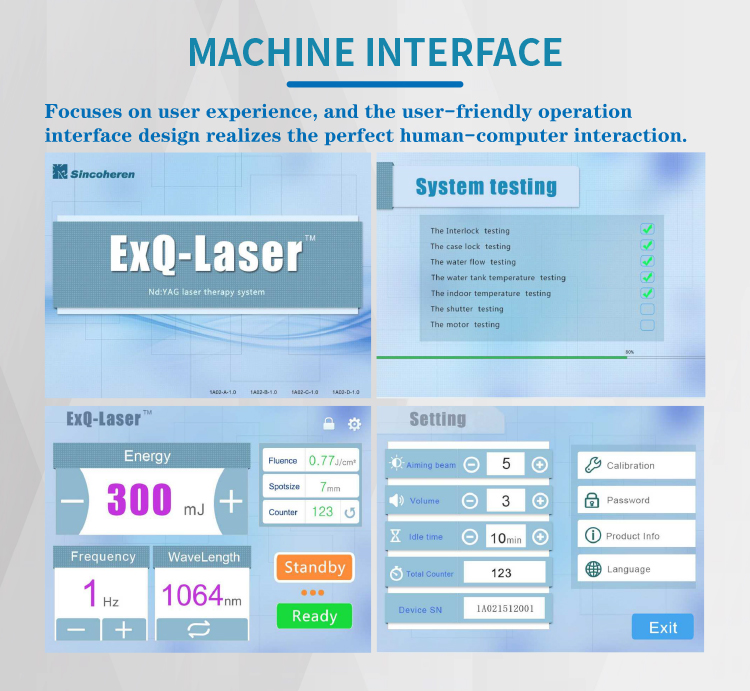

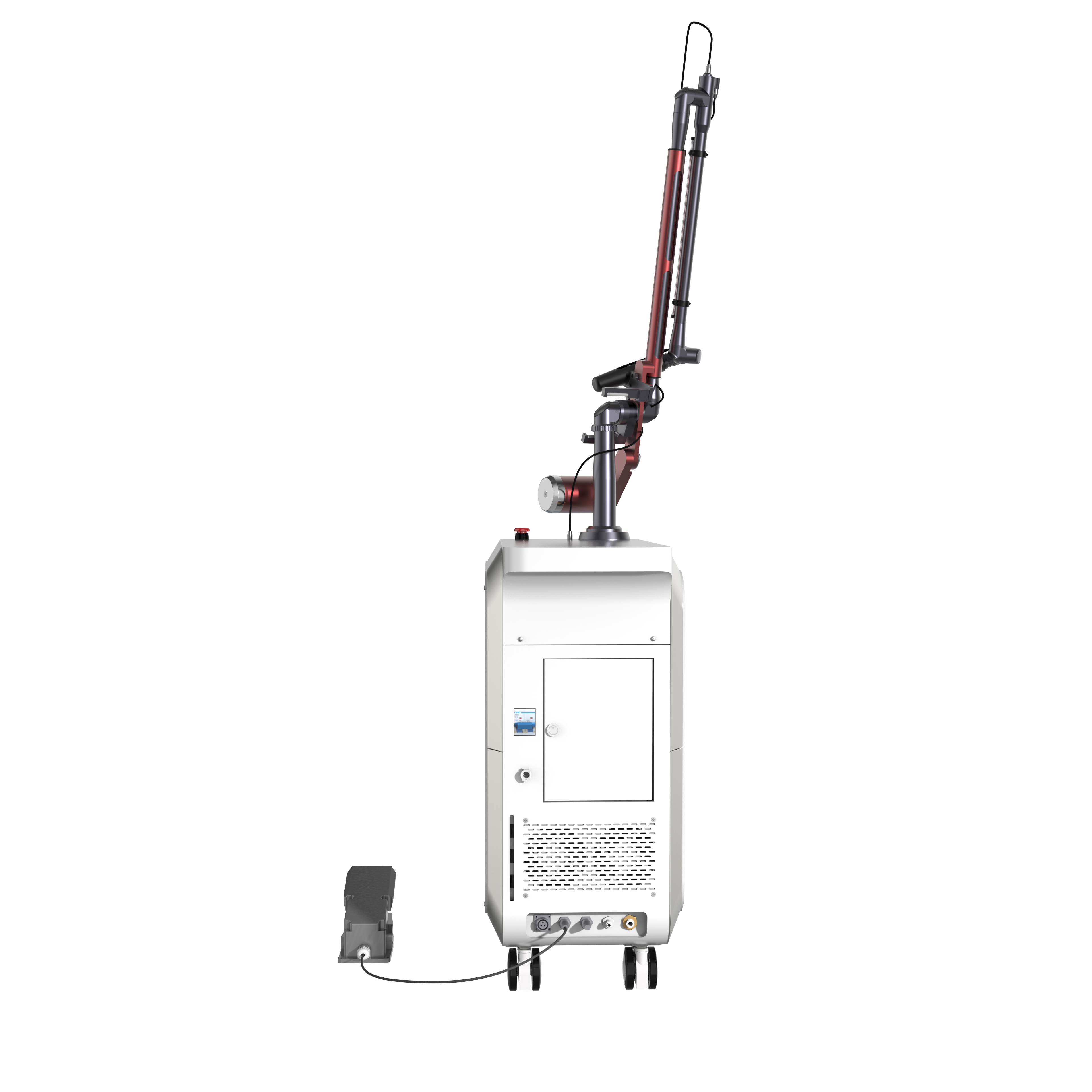

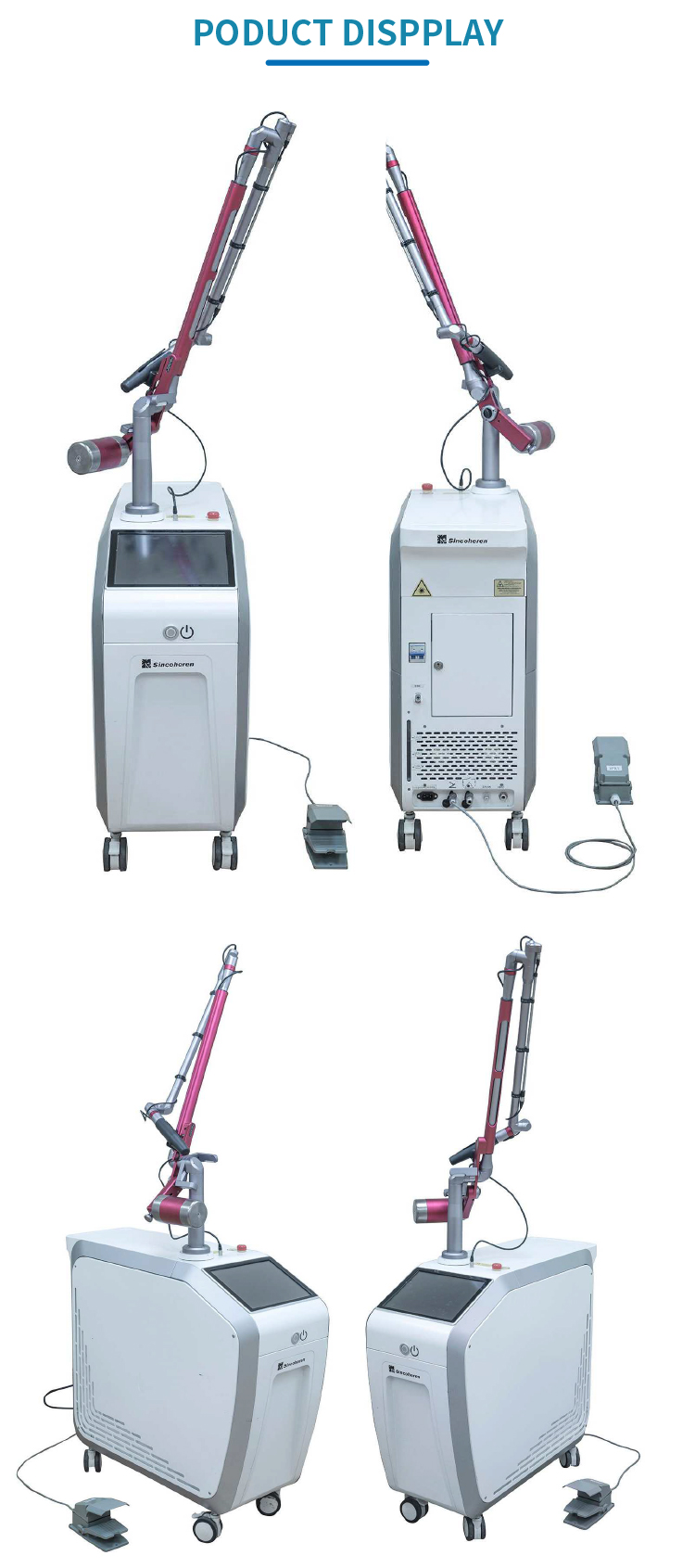

Product Interface:



KES multi-functional beauty equipment discovery pico tattoo removal/all skin tattoo removal/tattoo remove nano laser

Product Advantage:

1. Super power output ensures laser can easily get through surface skin to tissue in deeper layer and effectively get rid of pigmented pathology change.



2. Solid state laser with compact design giving steady-going performance



3. Longer continuous working-hours perfectly match the need for removing massive pathology chance



4. Short time and safe treatment with no risk to natural body tissue

Mode 2- Double light double stick
Product Advantage:

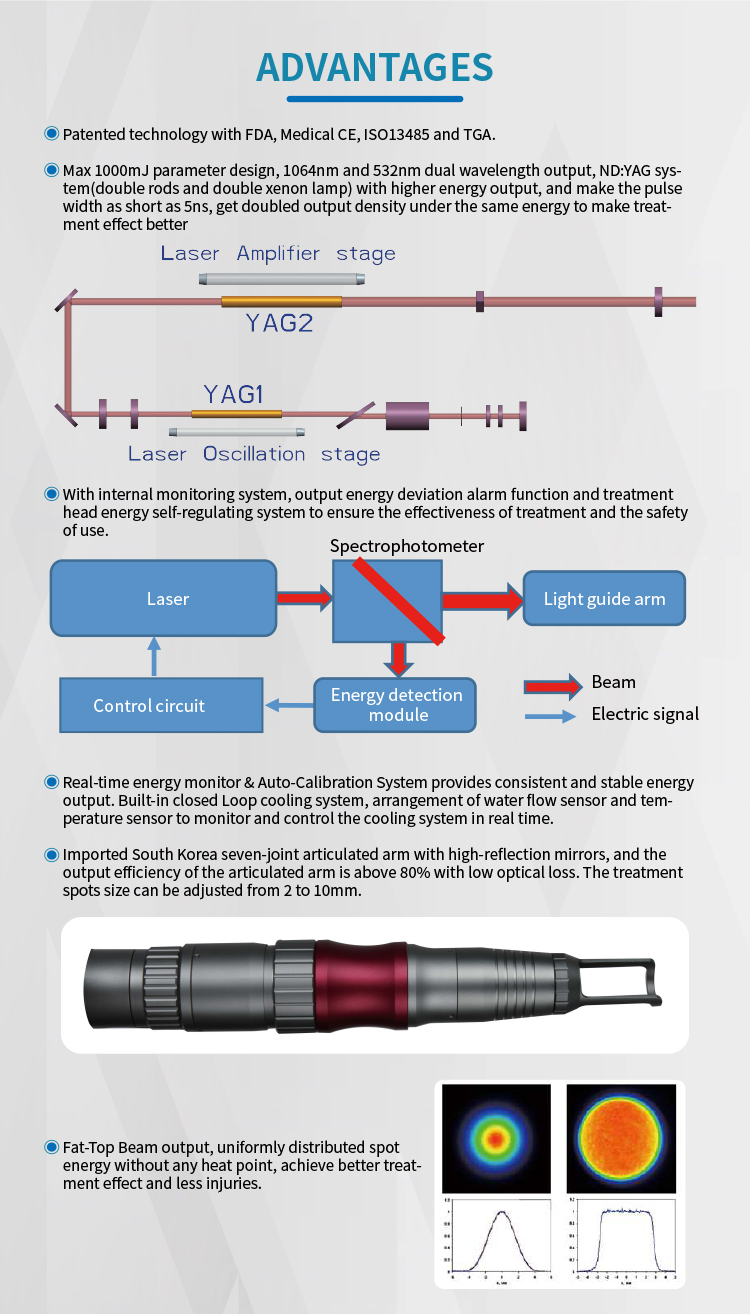

Laser Arm:

Import laser arm: rate of energy loss ≤ 13%

Luxury design

Free 3600 of rotation, ensure constant energy of laser power

it is more shock-resistant than existing products with advanced design



Auto-Calibration System:

Reliable treatment can be done in spite of long hours of use since its auto-calibration system provides consistent and stable energy output.

KES multi-functional beauty equipment discovery pico tattoo removal/all skin tattoo removal/tattoo remove nano laser
Quasi-Long mode:

Quasi-Long Pluse (pulse width 300us @ 1064nm) is a combination of toning and lifting which enables pigmented cells to absorb the laser selectively. It stimulates collagen by the destruction of pigmented cells, and it is useful to general skin for regenerating afater peeling, imporving loose skin, and minimizing large pores.



DUAL-Q mode:

DUAL-Q mode delivers 2 pulses of constant energy of laser power in a very short period of time. Compared to previous laser toning procedures, its energy is much higher. In order to reduce side effects of high energy laser such as hypopigmentation. Pigmentation or melasma recurrence, the high energy is divided into two, to increase the effect while reducing side effects. Q-DUAL-Q mode can be done at both 1064nm and 532nm wavelengths.



Traits
1. No harm to the hair follicle and normal skin, leaving no scar.



2.The latest hi-tech of laser explosion in a twinkling.



3.Short treating time and easy operation



4. High quality controlled solid-state laser complying with international standard.



5. Computerized with big LCD



6. Tiny sense of pain, Anesthesia is unnecessary in most cases



7. No downtime and interruption of routine activities, no side effect.



8. Extensive patient and fast return of investment.

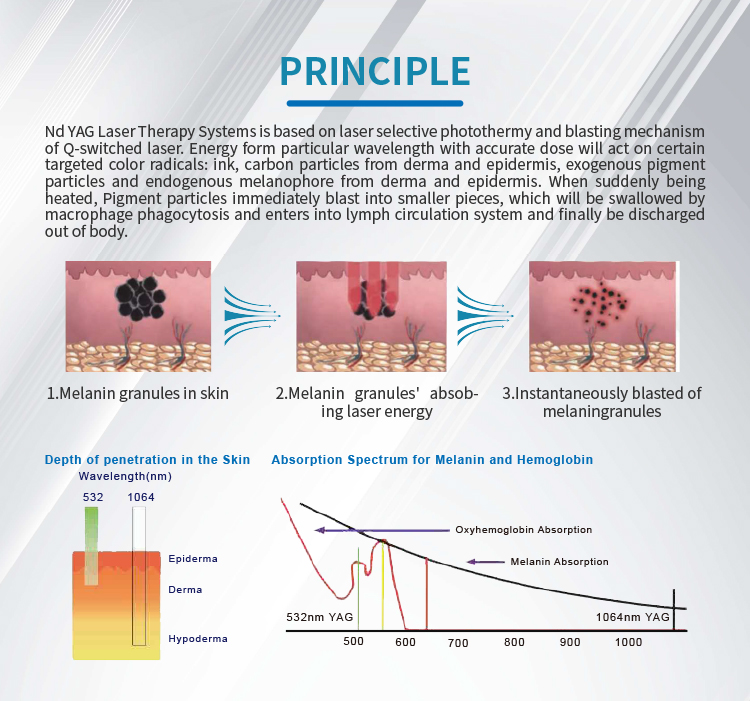

Treatment Theory:



High focus 1064nm/532nm laser energy transmits/transfer instantaneously to target lesion pigmentation site within extremely short period(6ns) and then results in an instantaneous pigmentation blasting.The pigmentation tiny/small particles are shattered into fragments, some fragments in the epidermis will be removed directly and deep tiny fragment in the dermis will be devoured/absorbed by phagocytes and then eliminated by lymphatic system, so achieve the best result for pigmentation removal.

KES multi-functional beauty equipment discovery pico tattoo removal/all skin tattoo removal/tattoo remove nano laser

 Before and after :
KES multi-functional beauty equipment discovery pico tattoo removal/all skin tattoo removal/tattoo remove nano laser
