Q-switched Nd:Yag Laser 532nm 1064nm 755nm Tattoo Removal Skin Rejuvenation Machine

Short Description:

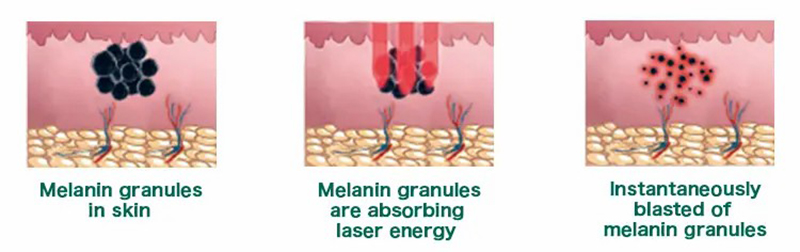

The treatment principle of Q-Switched Nd:Yag Laser Therapy Systems is based on laser selective photothermal and blasting mechanism of Q-switch laser.
Energy form particular wavelength with accurate dose will act on certain targeted color radicals: ink, carbon particles from dermis and epidermis, exogenous pigment particles and endogenous melanophore from dermis and epidermis. When suddenly being heated, pigment particles immediately blast into smaller pieces, which will be swallowed by macrophage phagocytosis and enters into lymph circulation system and finally be discharged out of the body.


Product Detail

Product Tags

How the Q-Switched ND YAG Laser Works?

The Q-Switched Nd:Yag laser works by targeting specific pigment in the skin, which TARGETS the damaged skin cells in the treatment area.
When it comes to laser tattoo removal, the Q-Switched Nd:Yag laser targets ink pigment and breaks it up into smaller particles through powerful bursts of energy. The ink is then absorbed into the blood stream and eventually expelled from the body.

Applications

1. Skin rejuvenation with laser peeling.
2. Removal of eyebrow line, eye line, lip line etc.
3. Removal of colorful tattoo: red, blue, black, brown etc.
4. Clearance speckle, freckle, coffee spots, sun-burn spots, age spots etc.
5. Removal of vascular lesion and spider vessel; removal of birth mark, nevus etc.

Advantages

Q-switched advantages:
1. Safest method of melsma/ melain/ tattoo removal
2. Painless treatment
3. Low Scarring
4. Minimal Recovery

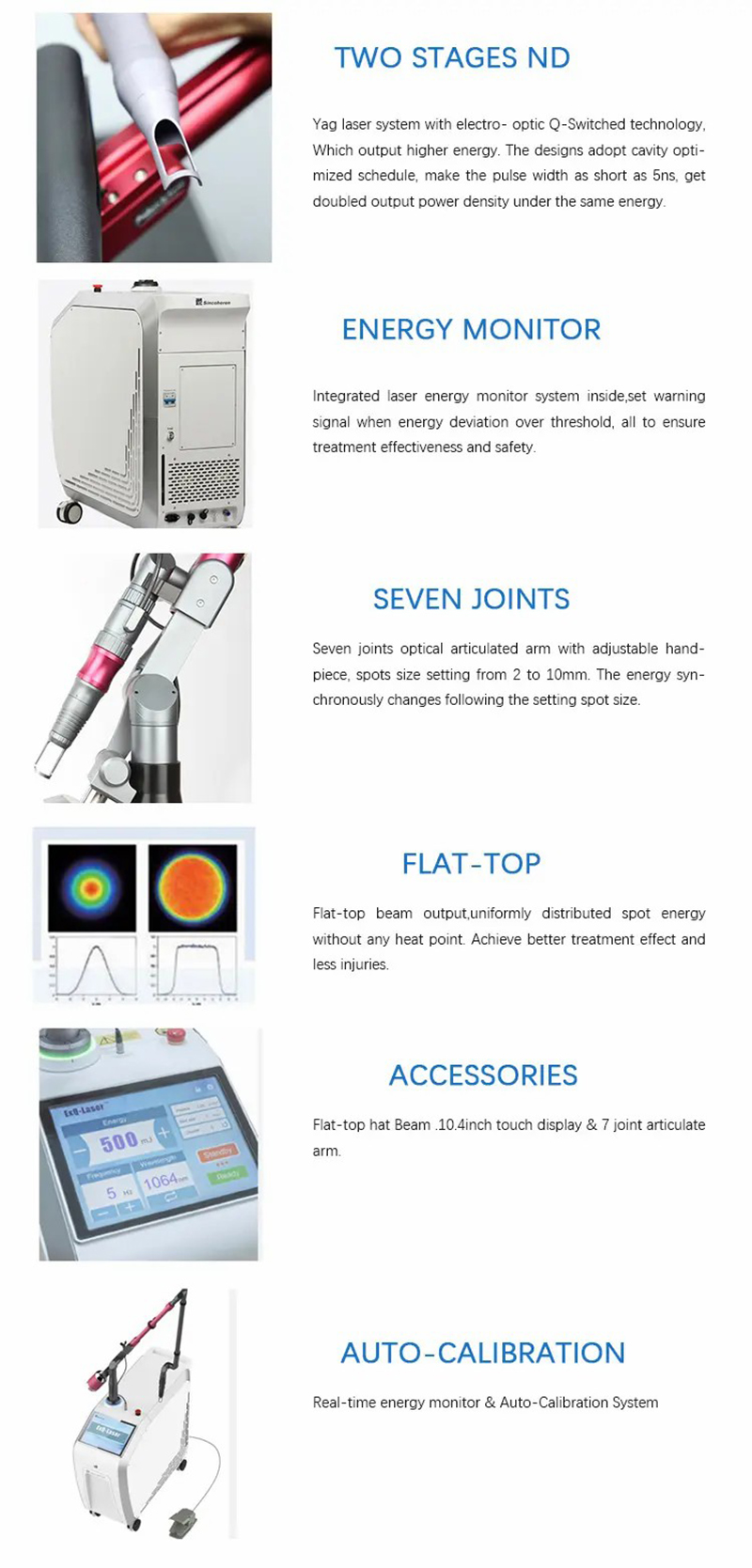

Our Q-Switched Nd:Yag laser  Advantages:
1. Flat-top hat Beam

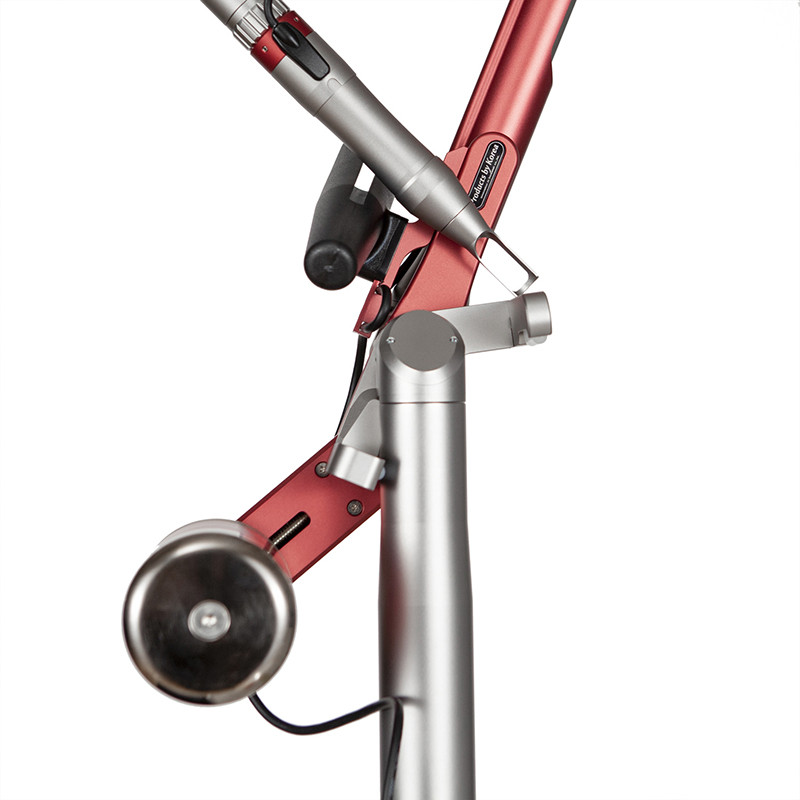

2. 7 joint articulate arm&10.4 touch display
3. Real-time energy monitor& Auto-Calibration System
4. Energy density is automatically adjusted with spot size
5. Short pulse duration 5ns
6. Adjustable spot size 2-10mm
7. Stable power supply with High peak power 8. Water Filtration System

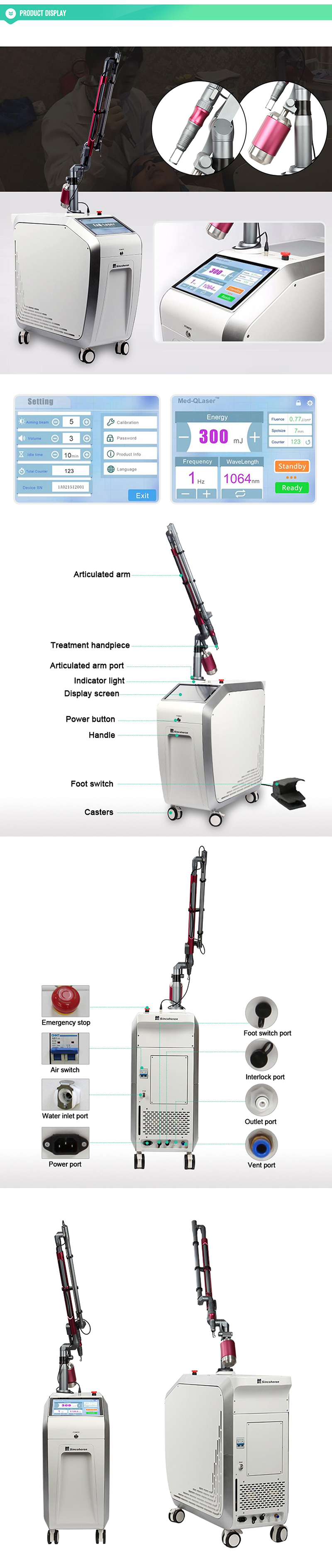

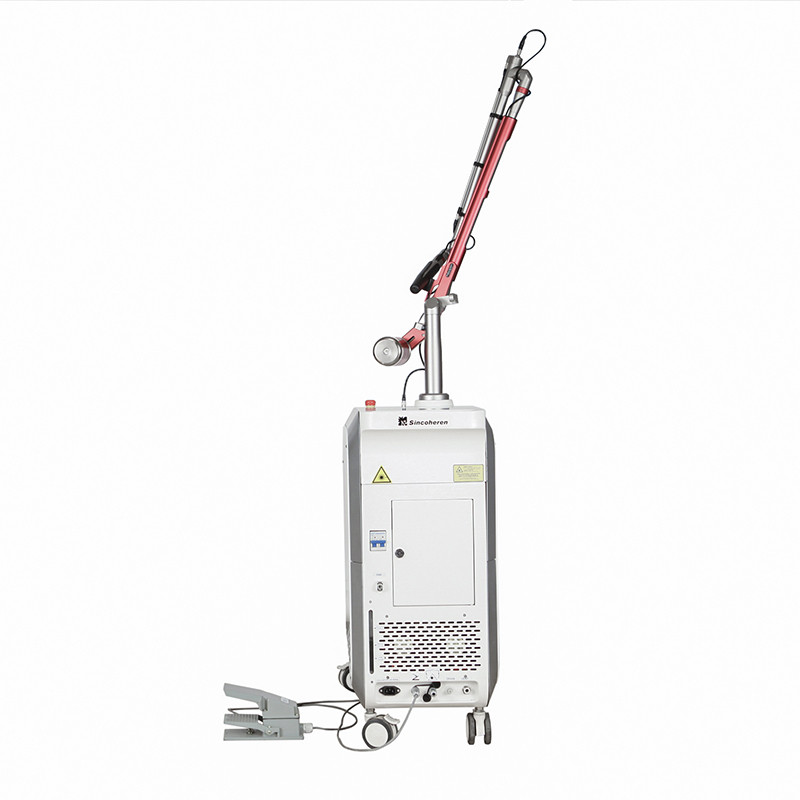

Product Details

1 2.2 2.3 2 3 4

Specification

Laser Type Q-Switched Nd:Yag Laser solid-state Laser Wavelength 1064nm 532nm755nm(optional)
Model Number Monaliza-2 Type Laser
Q-Switch Yes Pulse width 5ns
Energy of 1064nm 100-600mj (single pulse)100-1200mj (double pulse)100-1000mj (long pluse) Energy of 532nm 100-300mj (single pulse)100-600mj (double pulse)
Frequency 1-10Hz(single pulse)1-5Hz(double pulse& long pluse) Dimension 351mm*925mm*775mm (without optical articulated arm)
Electrical 110-240VAC 50-60Hz 1200VA Certification FDA, TUV, TGA, Medical CE
Aiming beam 635nm,  <5mW Spot size 2-10mm adjustable
Net weight 80KG Warranty: 2 YEARS
